Logo



Product
Dual (2G + 3G) RF Repeater
Add to Basket Inquire now

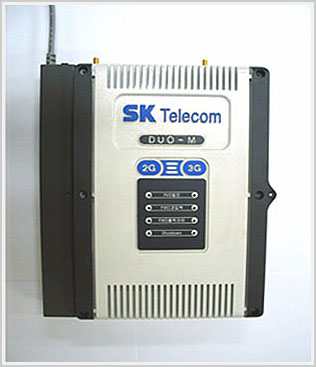

Dual (2G + 3G) RF Repeater

  • Extremely small size and weight
  • Automatic gain control
  • Supplementing shutdown function to avoid over input/output power and oscillation
  • Durable weatherproof case
  • Possible to support GSM+UMTS
Characteristic
Specification
Downlink
Uplink
Frequency Range(MHz)
869 - 894
and 2110 - 2170
824 - 849
and 1920 - 1980
Output Power(dBm)
16 / Total (2G)
and 14 / Total (3G)
21 / Total (2G)
and 21 / Total (3G)
System Gain/Control Range(dB)
67/30
78/30
67/30
78/30
System Delay
5µs > (2µs p-p)
Power Supply
AC220V
Demesion (WxHxDmm)
260 x 310 x 100
Weight(kg)
8.5
